Post subject: 1 down, second one going down... 02/06/05 - 4.5 hrs

Posted: Sun Feb 06, 2005 6:16 pm

Site Admin

Joined: Fri Oct 15, 2004 6:27 pm
Posts: 112
Location: Fairbanks, Alaska

Well I got that first aileron finished up today and got the skin for the second one drilled to #40. Actually, the ailerons have to be installed on the wings before they can be 100% finished... this is how you align the center hinge point... so everything but that has been completed on the right aileron.

Attachments:

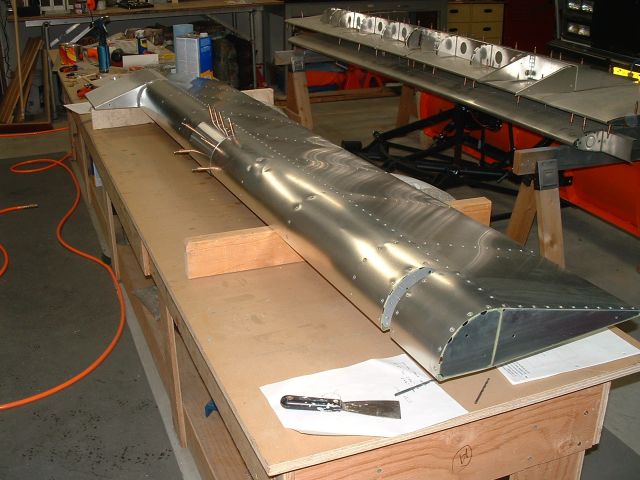

File comment: Just need to cut the hinge slot in the center cover, and put the end rib doubler on.

2005_0206_121144AA.JPG [ 60.04 KiB | Viewed 36811 times ]

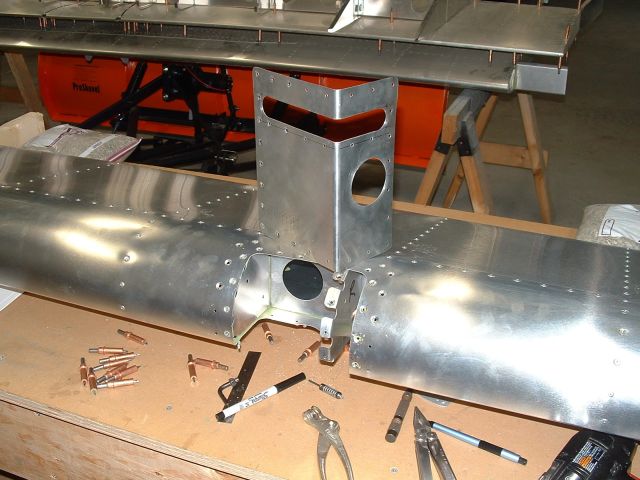

File comment: Center hinge cover all ready.

2005_0206_134543AA.JPG [ 60.45 KiB | Viewed 36812 times ]

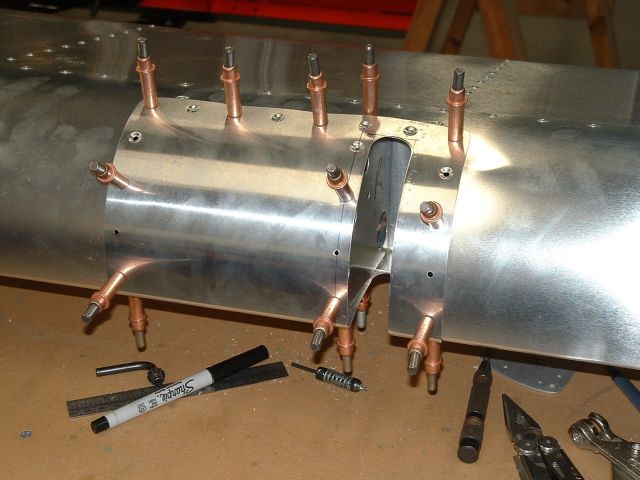

File comment: Center hinge cover installed after cutting the hinge slot and access hole.

2005_0206_134818AA.JPG [ 51.76 KiB | Viewed 36810 times ]

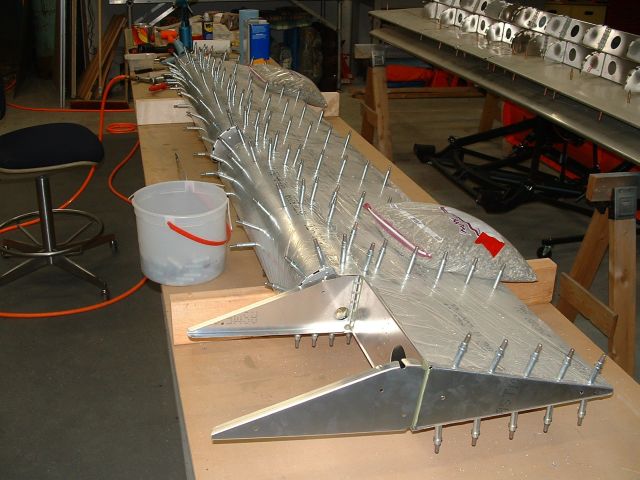

File comment: Moving on to the left aileron, got the skin and frame drilled to #40.

2005_0206_162855AA.JPG [ 61.28 KiB | Viewed 36812 times ]
