Post subject: Rudder complete... 26.1 hours to construct. 11/27/04

Posted: Sat Nov 27, 2004 10:01 pm

Site Admin

Joined: Fri Oct 15, 2004 6:27 pm
Posts: 112
Location: Fairbanks, Alaska

Well I finally got enough of the insulation and sheet rock done to get my workbench cleared off. So I took this evening to finish up the rudder.

All that was left to do was clean the surfaces up, prime, and rivet. Then where the skin overlaps on the leading edge, you have to drill holes here and rivet this closing the whole thing up.

It took me 26.1 hours to build the rudder... this was a pretty simple piece to build. Now it's time to get busy on the elevator again.

Attachments:

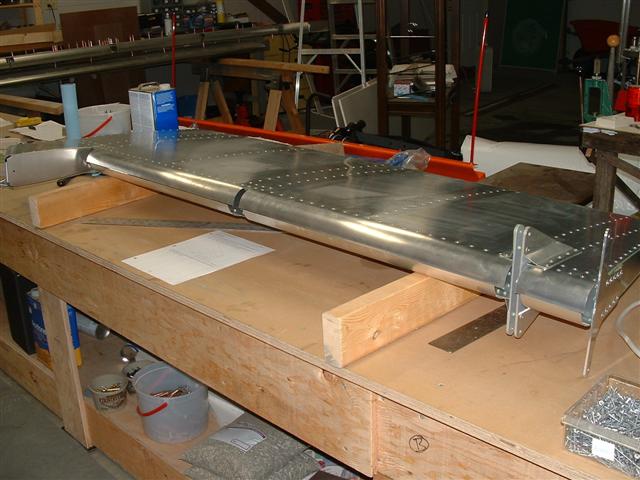

File comment: Left side all riveted up

2004_1127_192014AA.JPG [ 38.38 KiB | Viewed 57289 times ]

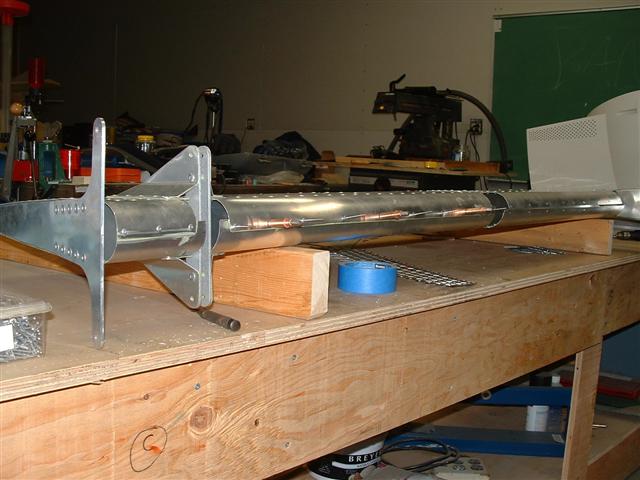

File comment: On the leading edge where the 2 ends of the skin overlap you have to drill and rivet to close this up.

2004_1127_192022AA.JPG [ 54.7 KiB | Viewed 57289 times ]

File comment: Here is the leading edge in the process of getting riveted.

2004_1127_201030AA.JPG [ 49.05 KiB | Viewed 57290 times ]
